Essential Accessories for Glove Boxes | VTI

Regenerable Solvent Trap

o Remove solvent vapors o Absorbent: Activated Carbon o Automatic purging and evacuation control o Use two KF40 ports design allowing easy unload and refill of the absorbent o Installed in line with purification system allowing removal of harmful solvents from the glovebox atmosphere

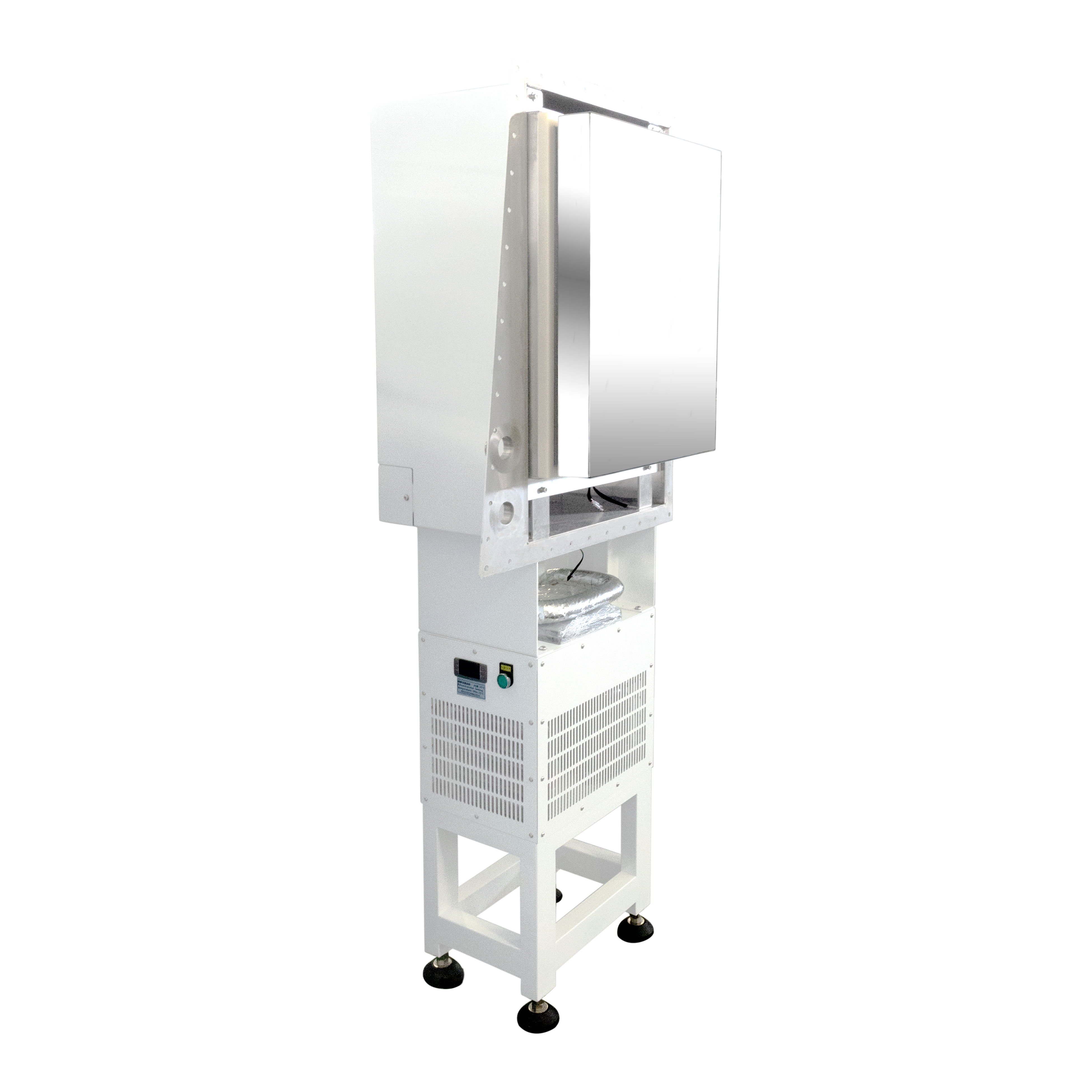

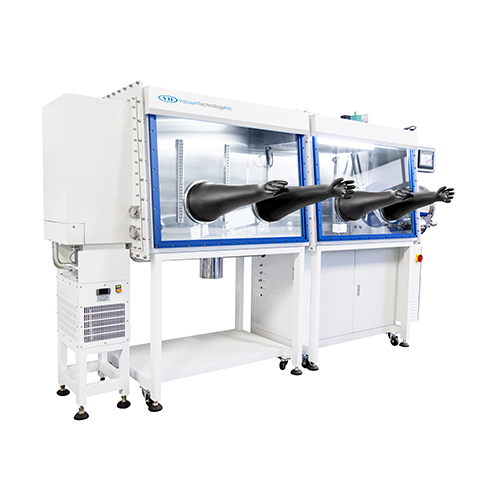

Freezer

1) Left-mounted, door inside of box
2) Volume: 30 Liters
3) Compressor power 1/2 HP; Lowest temperature: -30 °C
4) To be connected with glovebox, compressor to be installed on the ground
5) With temperature controller to protect compressor from being initiated frequently; temperature dropping amplitude can be controlled by temperature controller or time relay.

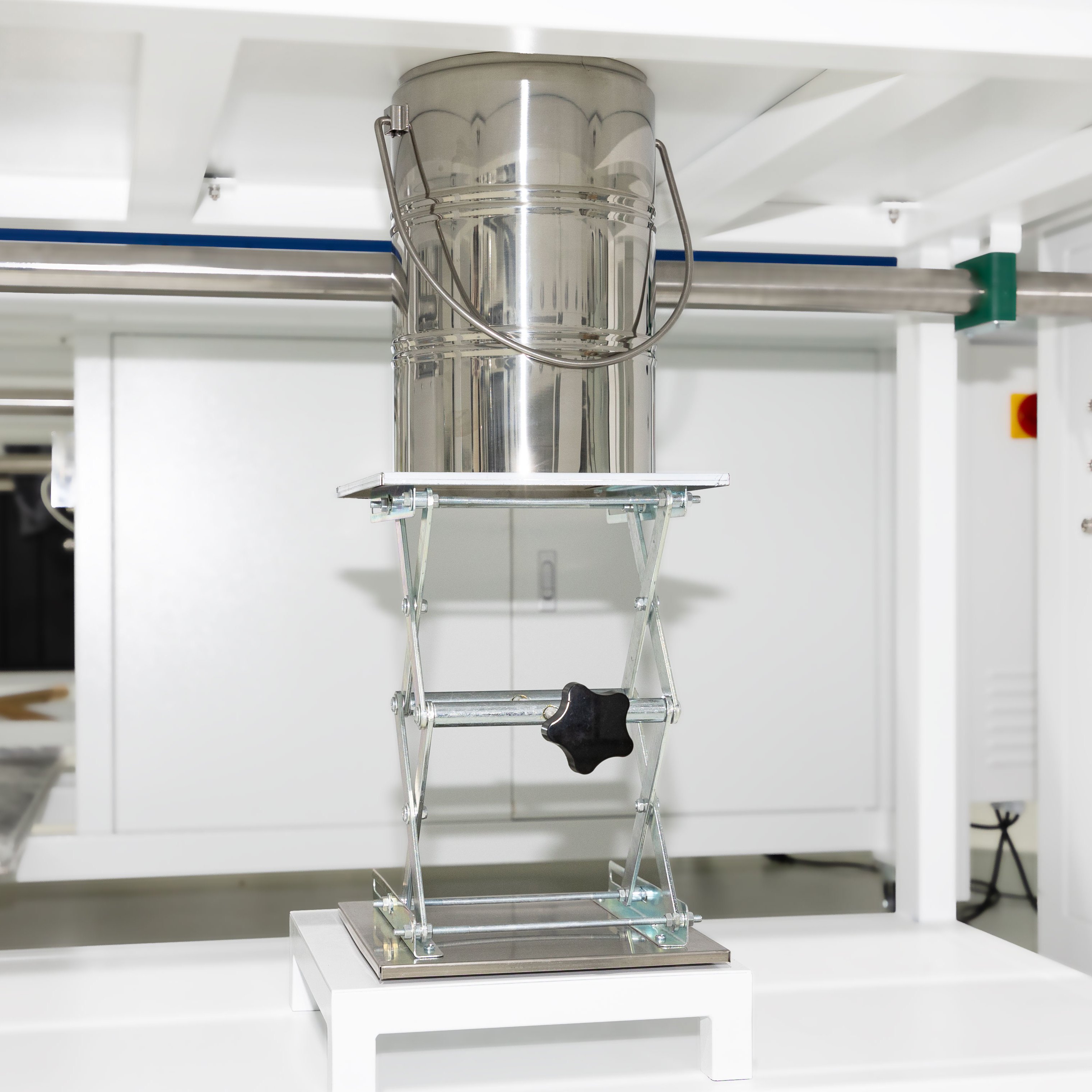

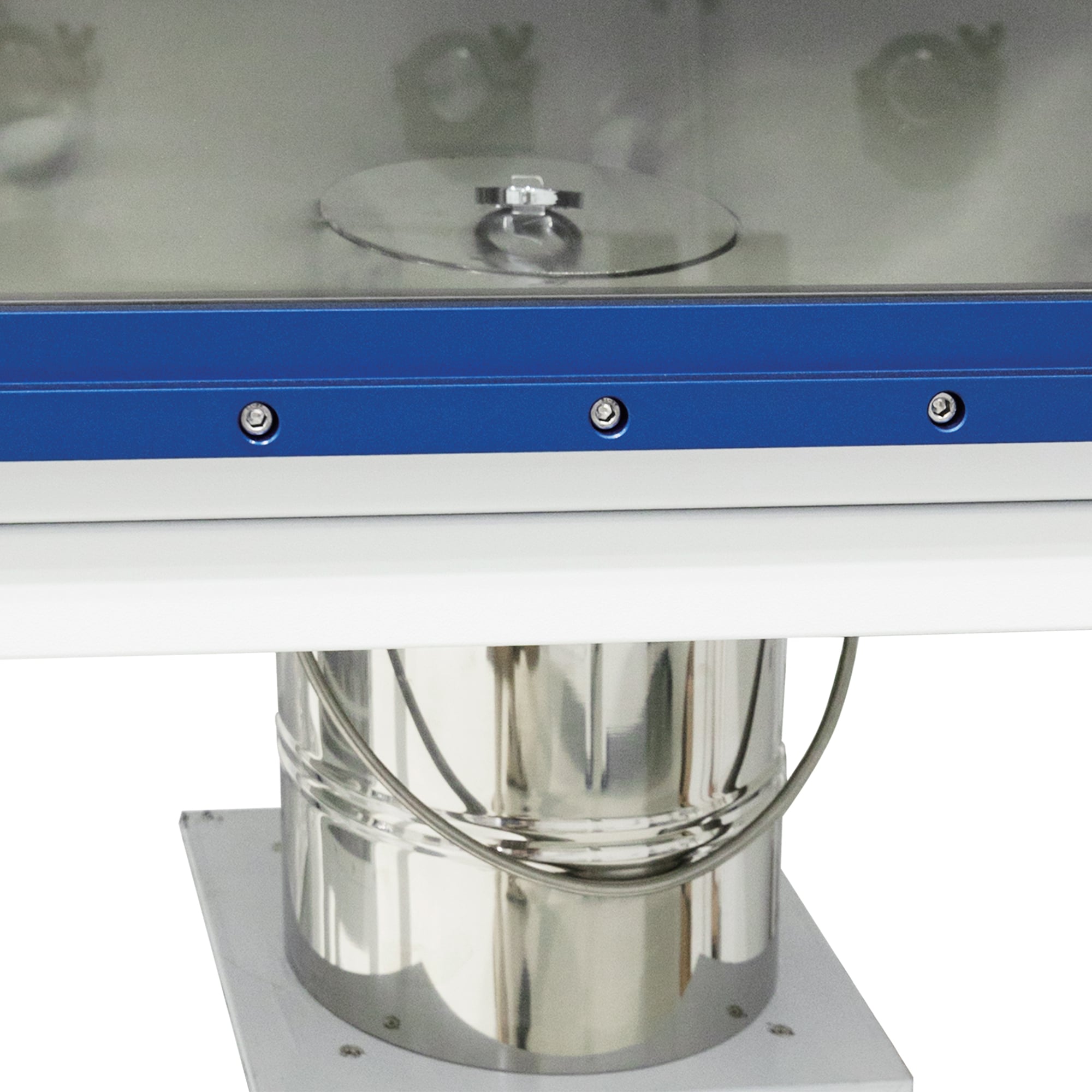

Cold Well

1) Stainless steel well to be built on the bottom of glovebox
2) Size: Dia. 150mm, Deep 190 mm, (customized size on request)
3) DEWAR is filled with liquid Nitrogen coolant for low temperature work

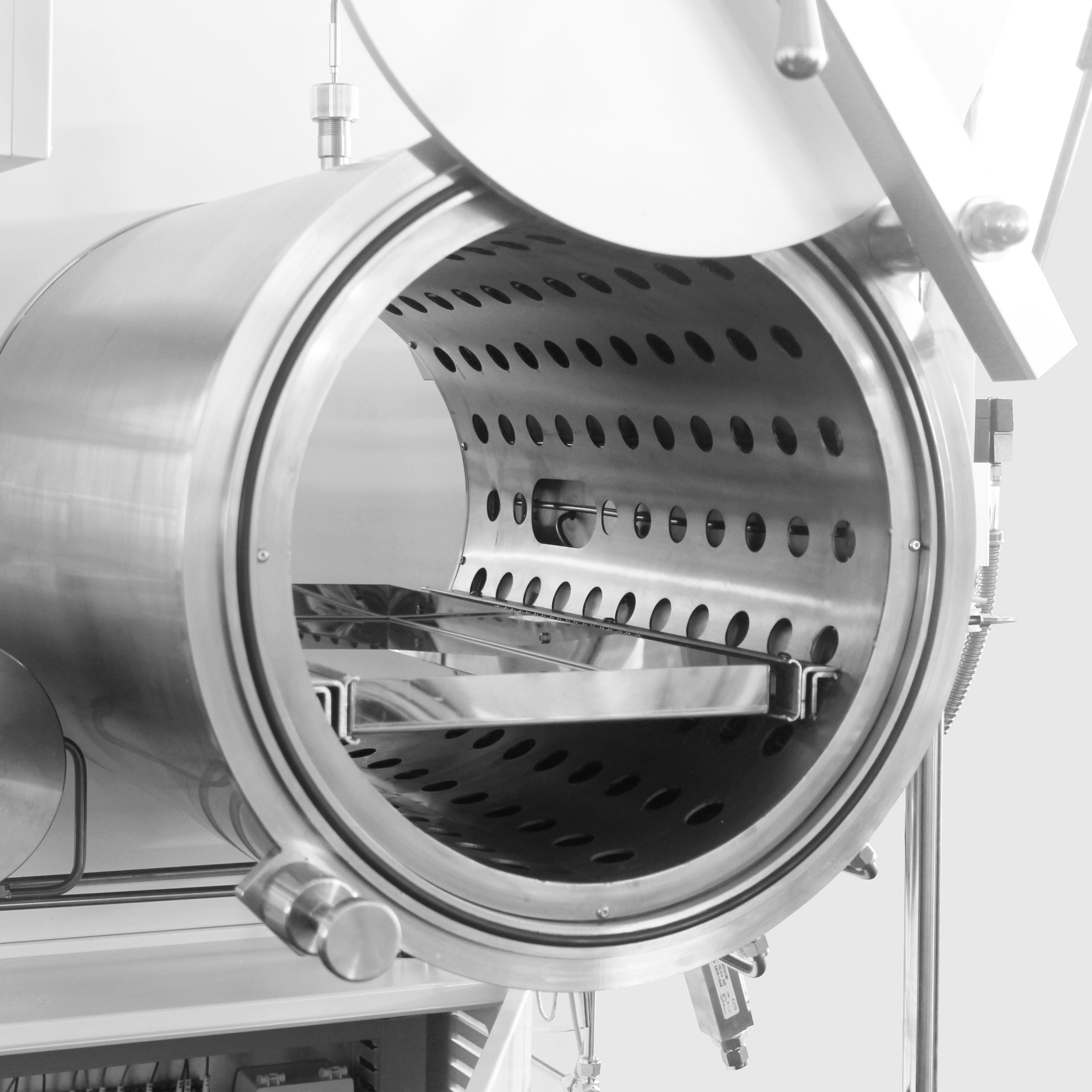

Heated Antechamber

Temperature range: From ambient temperature to 200℃

HF/H₂S Absorber

Removal of Hydrofluoric Acid and other solvent vapors

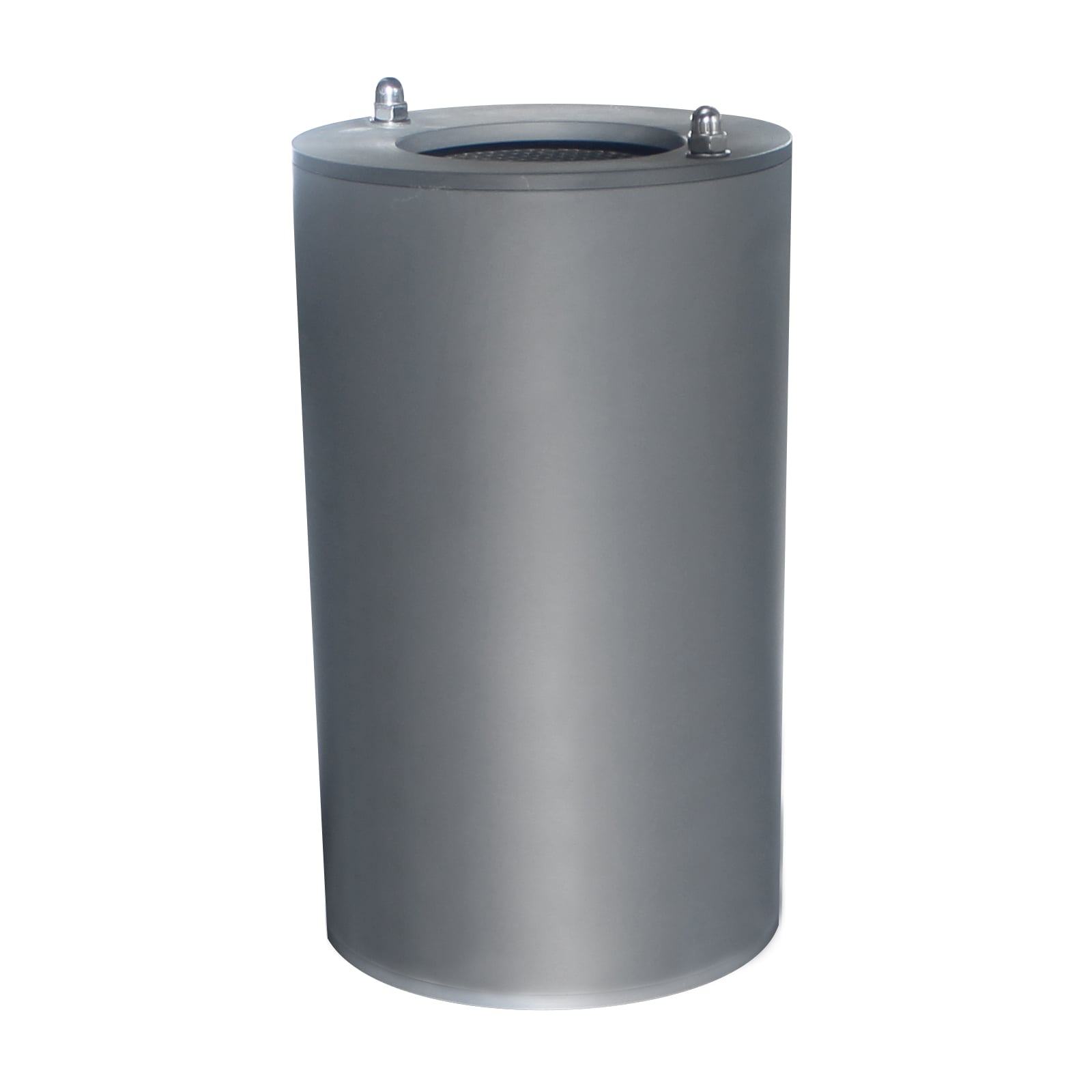

Internal solvent Trap

1) To be installed inside the glovebox for absorbing solvent vapor
2) Absorbent: Activated carbon 1.25kg

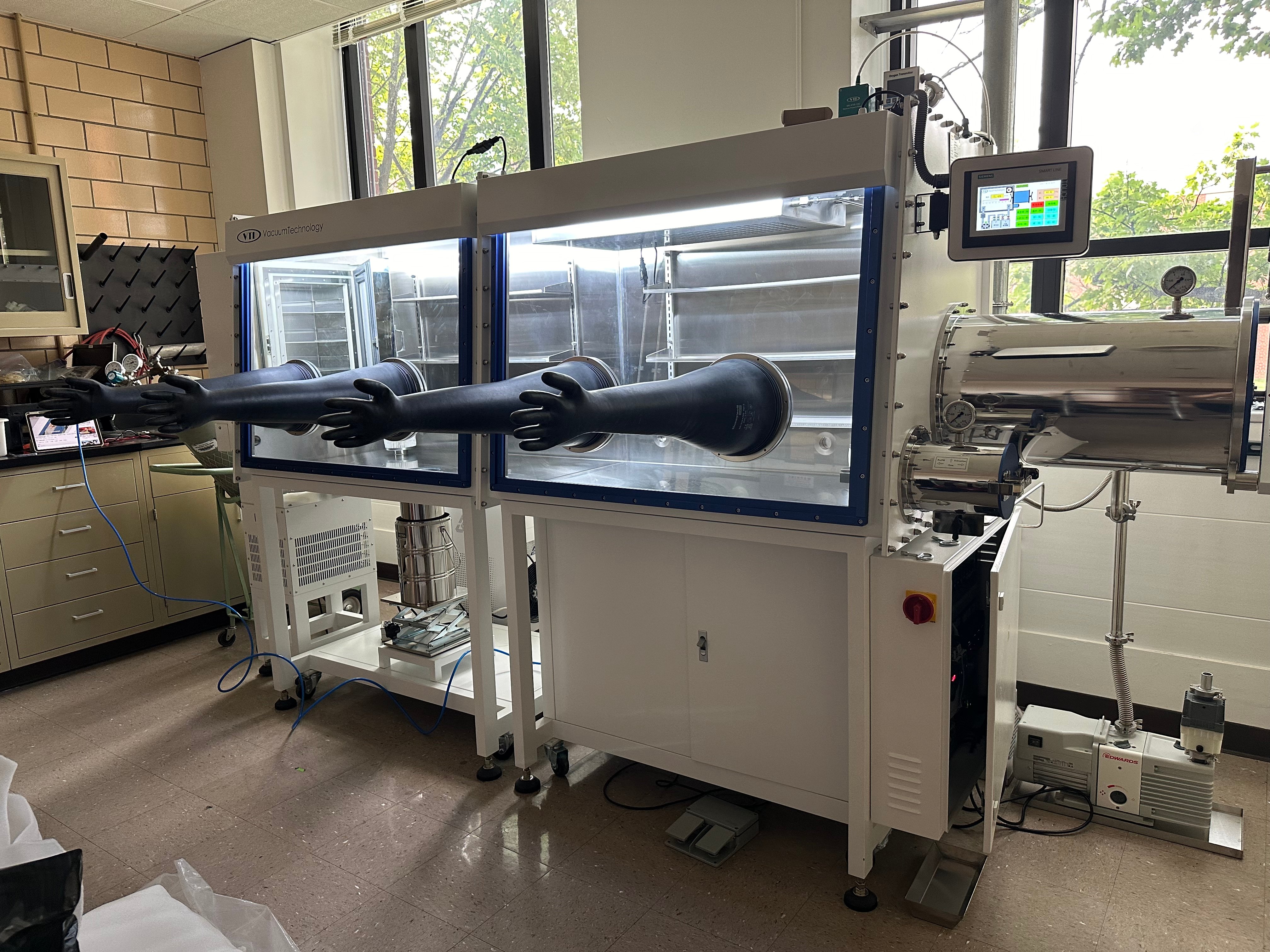

Heat Exchanger

Heat Exchanger

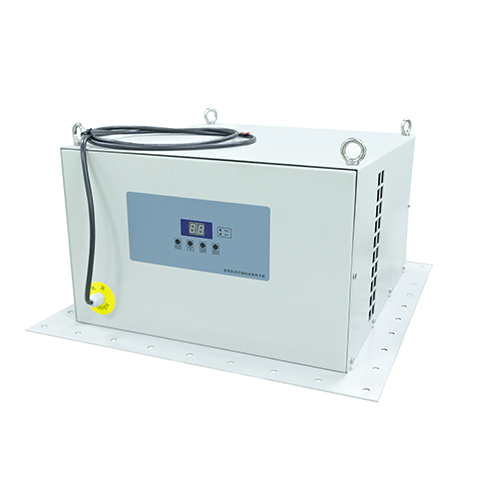

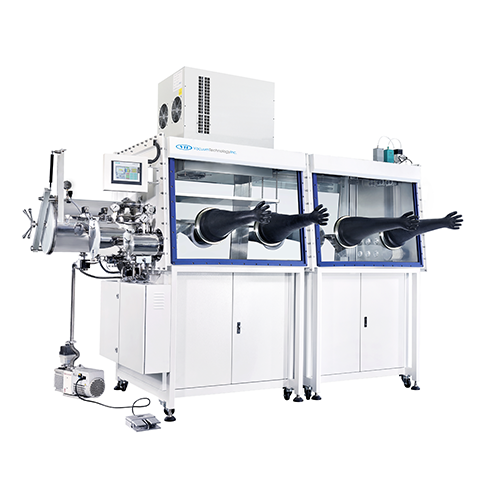

Air Conditioner

Air Conditioner

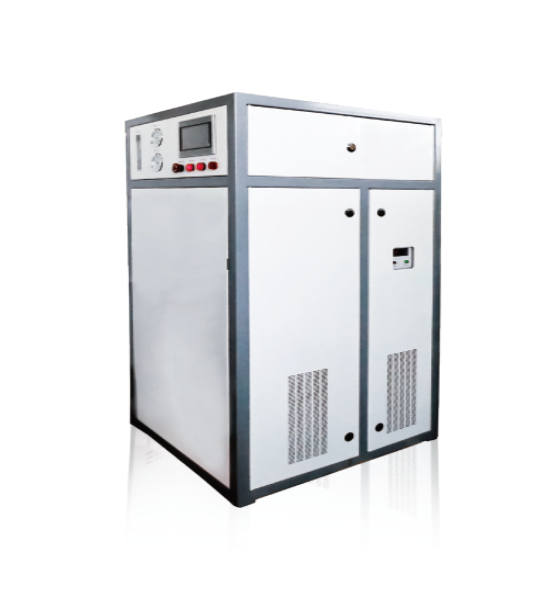

N₂ Removal System

1) Effectively remove nitrogen inside the glovebox when using argon as working gas.
2) Nitrogen content < 1ppm

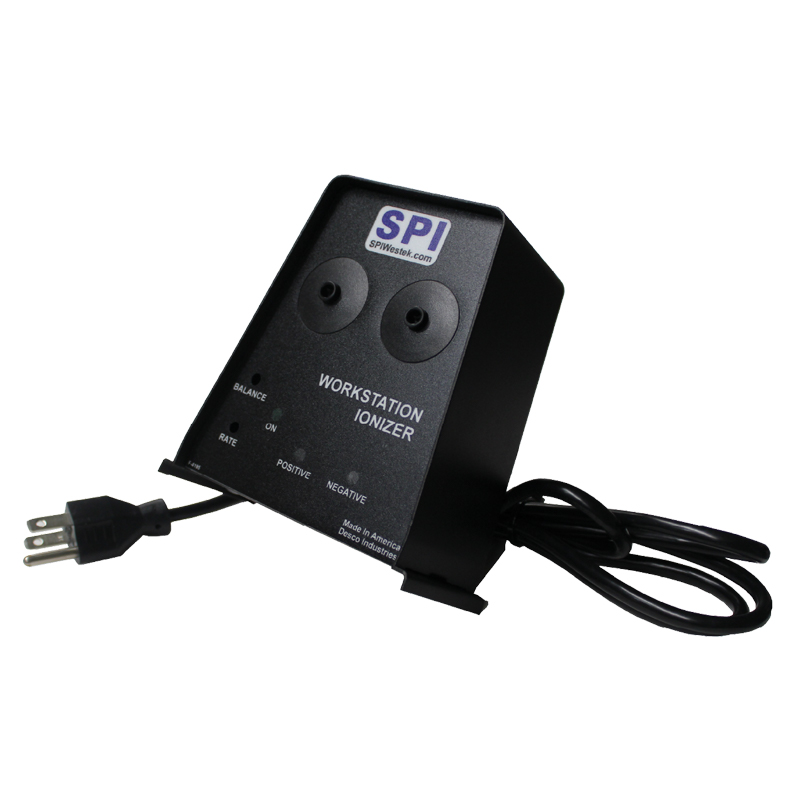

Ionizer without fan

1) Effectively remove localized static charges
2) Effective ionization range: 12"
3) Pulse rate and ionic balance controls allow for effective calibration and adjustment of the Counter SPI
4) To reach optimum ion balance and output

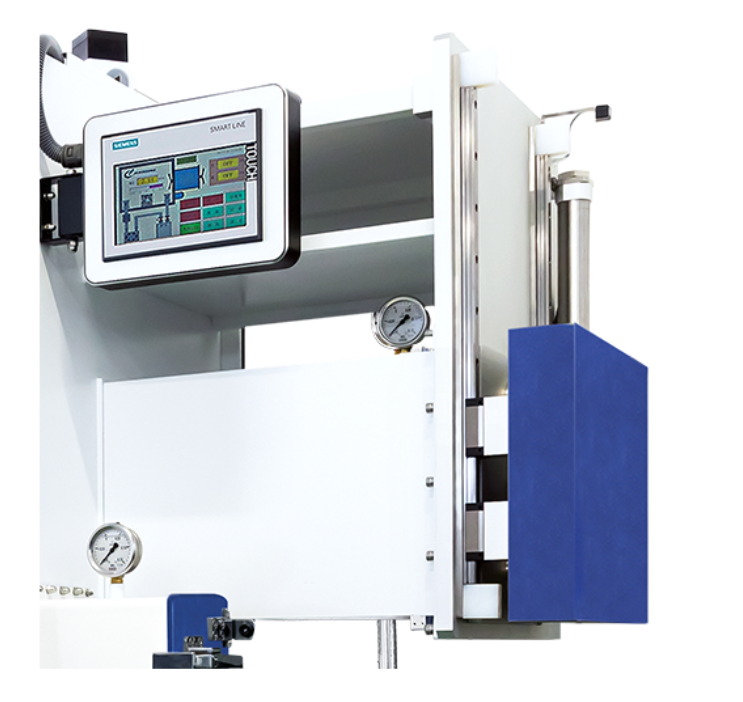

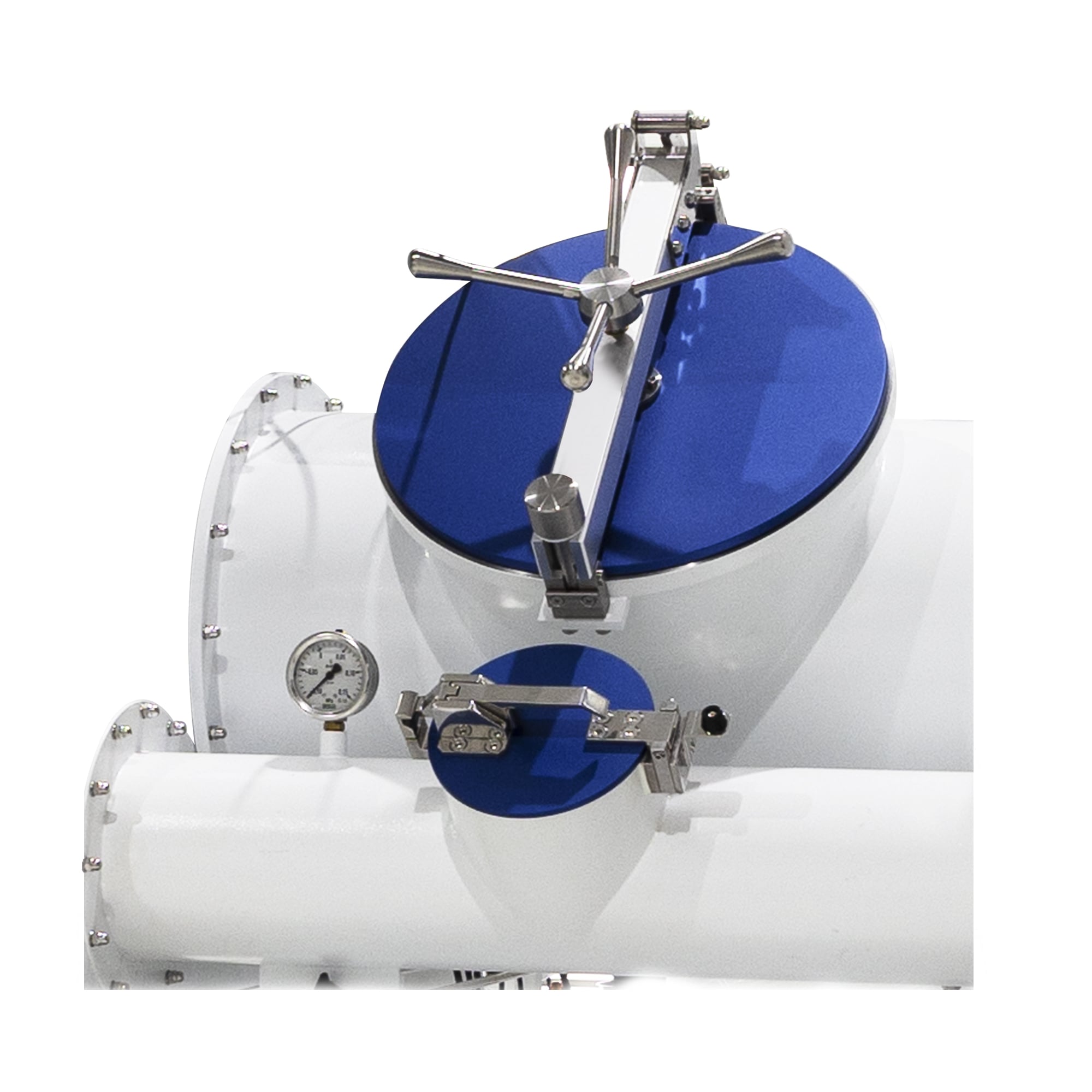

T-Antechamber

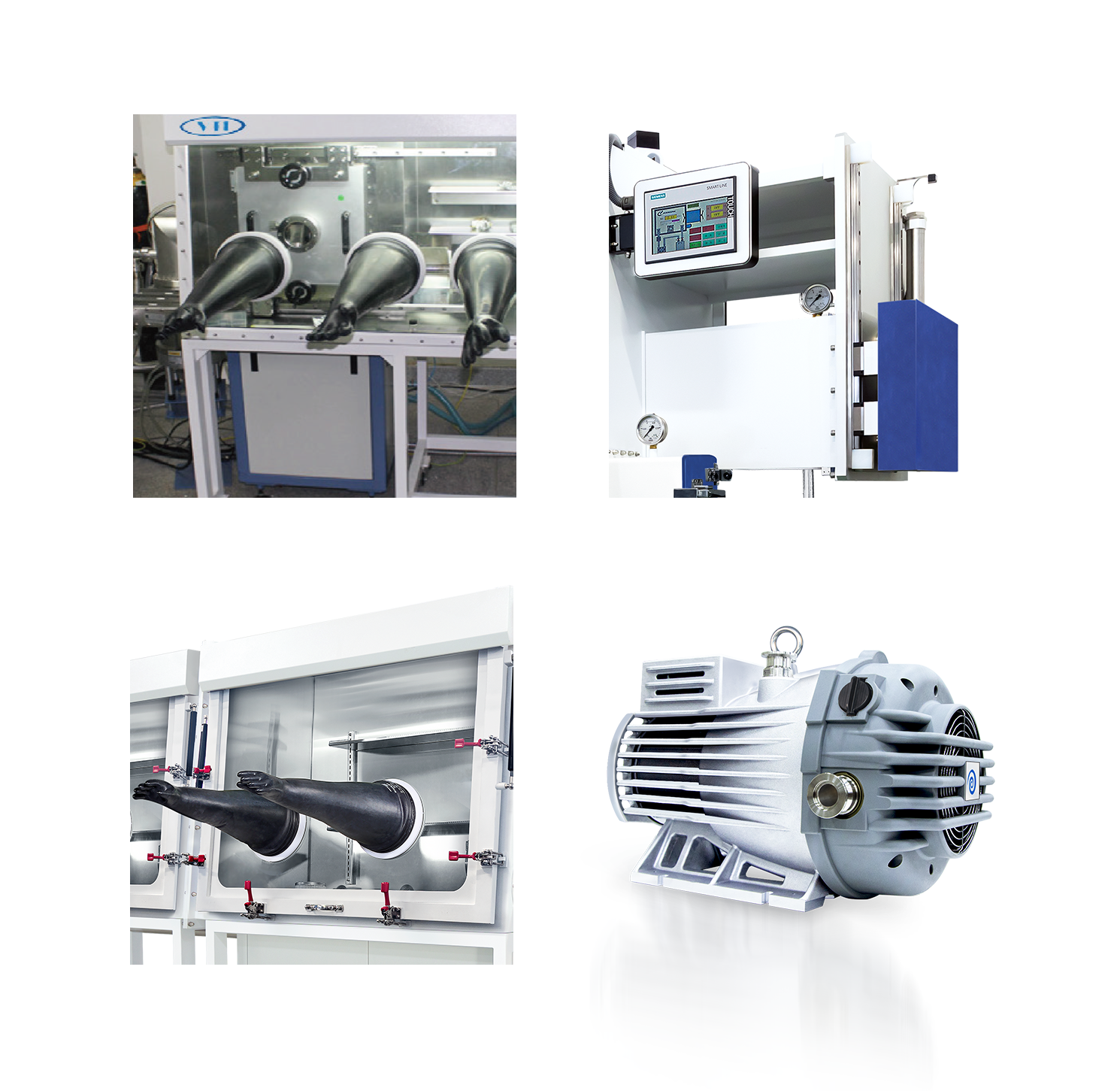

Other Options
