Vacuum components

The vacuum components include dry vacuum pumps, valves, and flanges.

Manufactured with advanced production processes, these components are widely used in industries such as physical and chemical materials science, lithium batteries, solar cells, pharmaceuticals, and more.

View Brochure

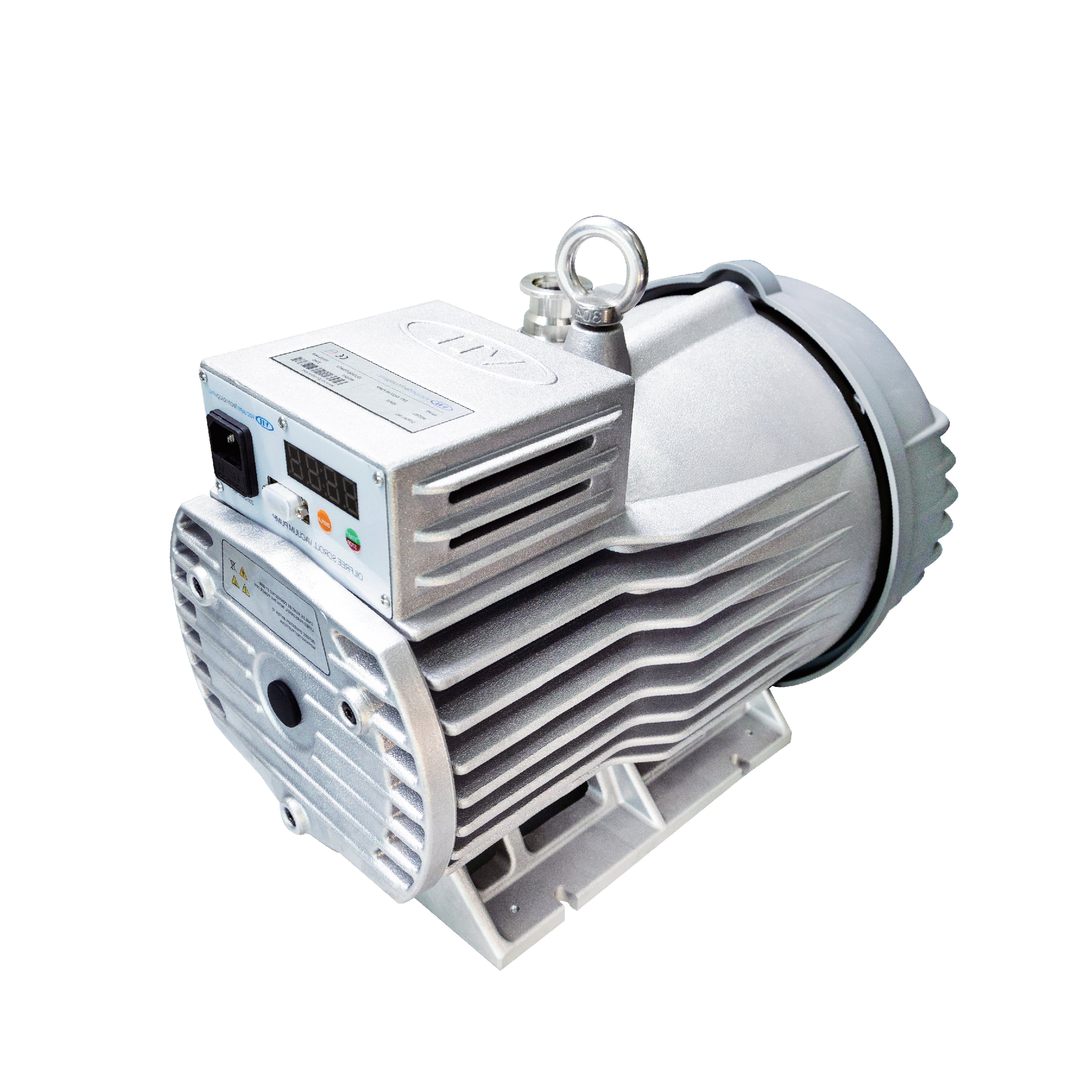

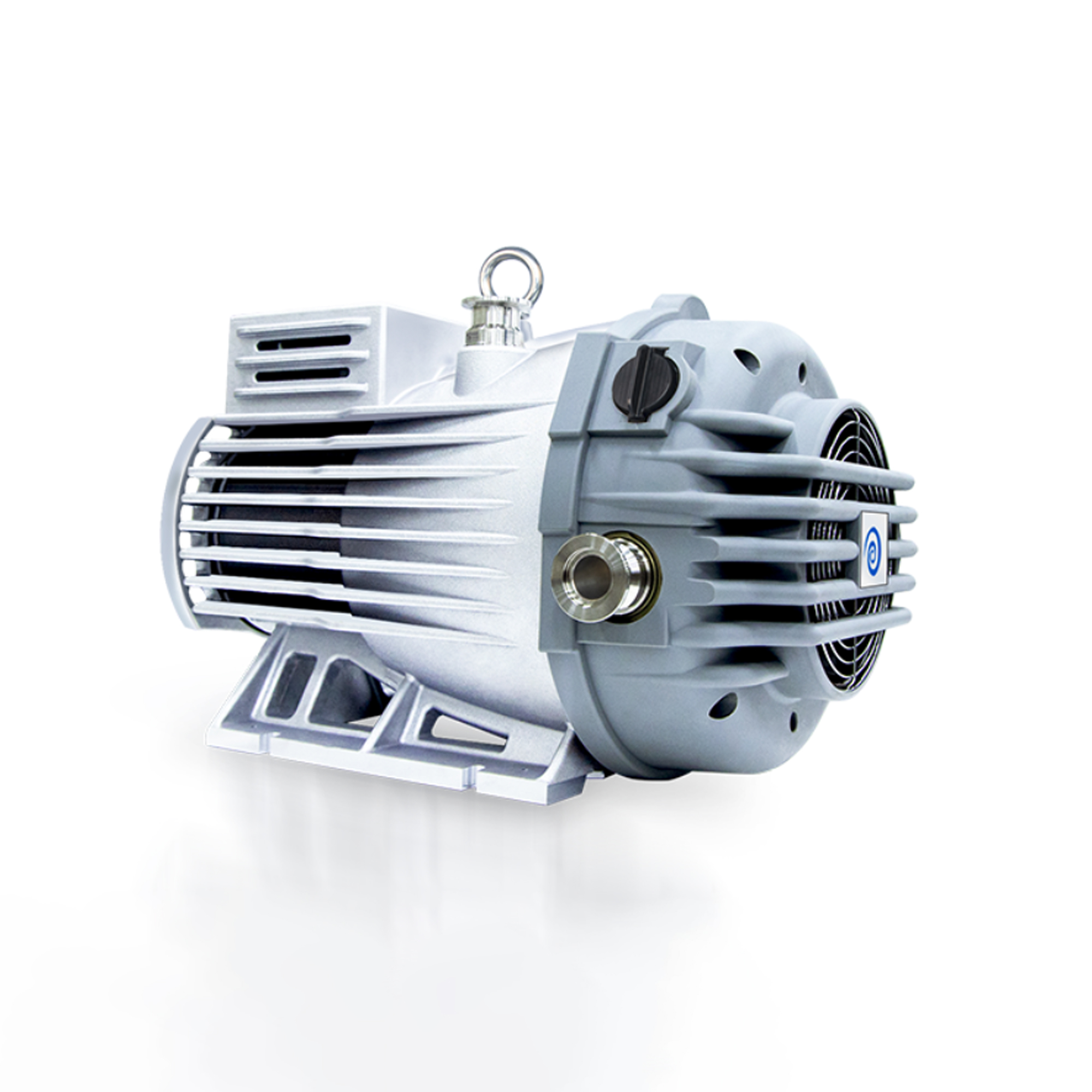

VDP10 Dry Vacuum Pump

Features:
100% oil-free dry scroll pump, no backflow or oil spraying, with extensive applications.
Advantages:
Frequency Control Ensuring continuous optimal operation
Build-in One-way Check Valve, Low leakage and safe operation
Filtration Unit, For multi-environment needs
Motor and Vacuum System Integration, more compact, lightweight and efficient.
Gas Ballast Valve, for high steam environment
Low vibration, low noise, low power consumption, compact and lightweight

Technical Data

Application

VDP10/220V

VDP10 Dry Vacuum Pump

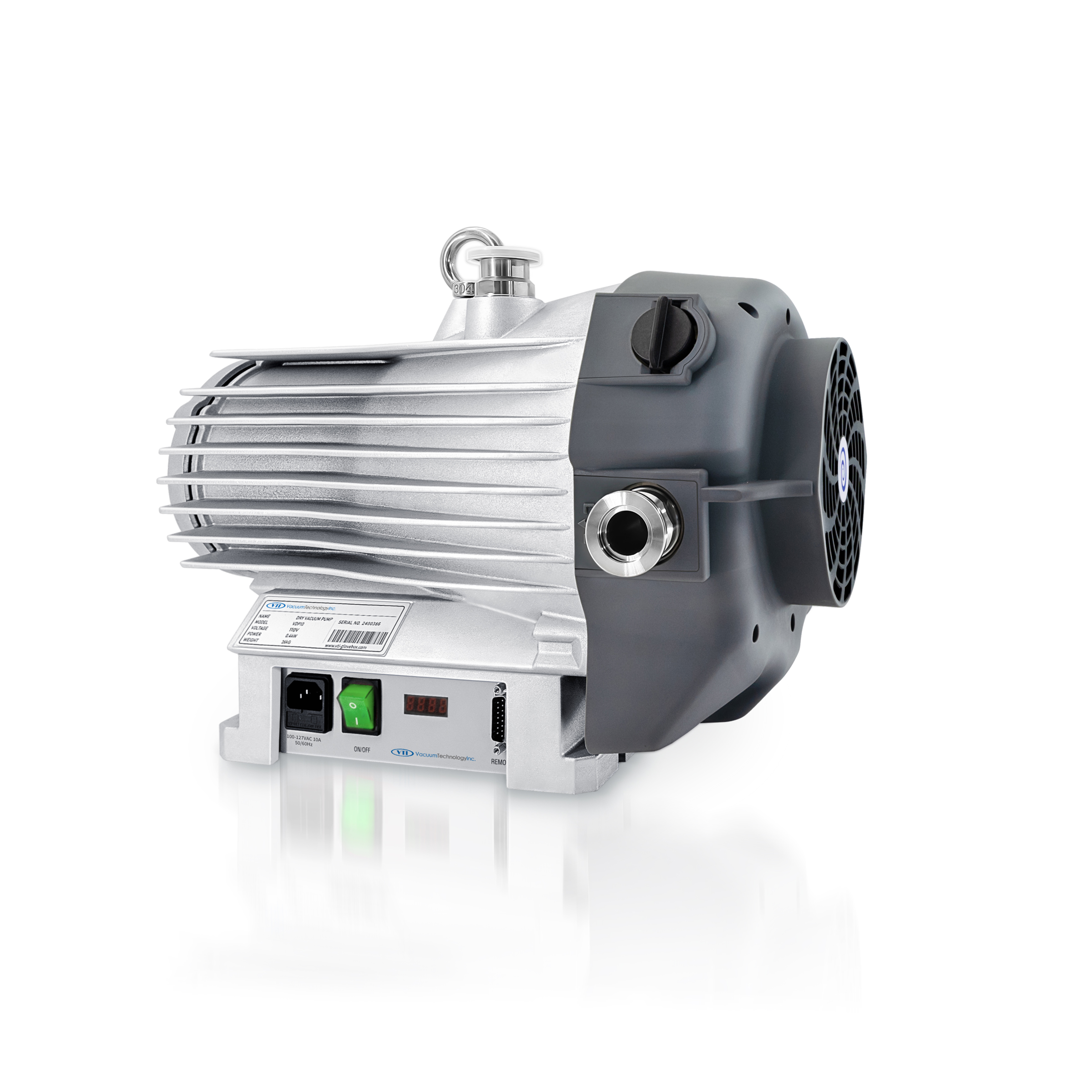

VDP10/110V

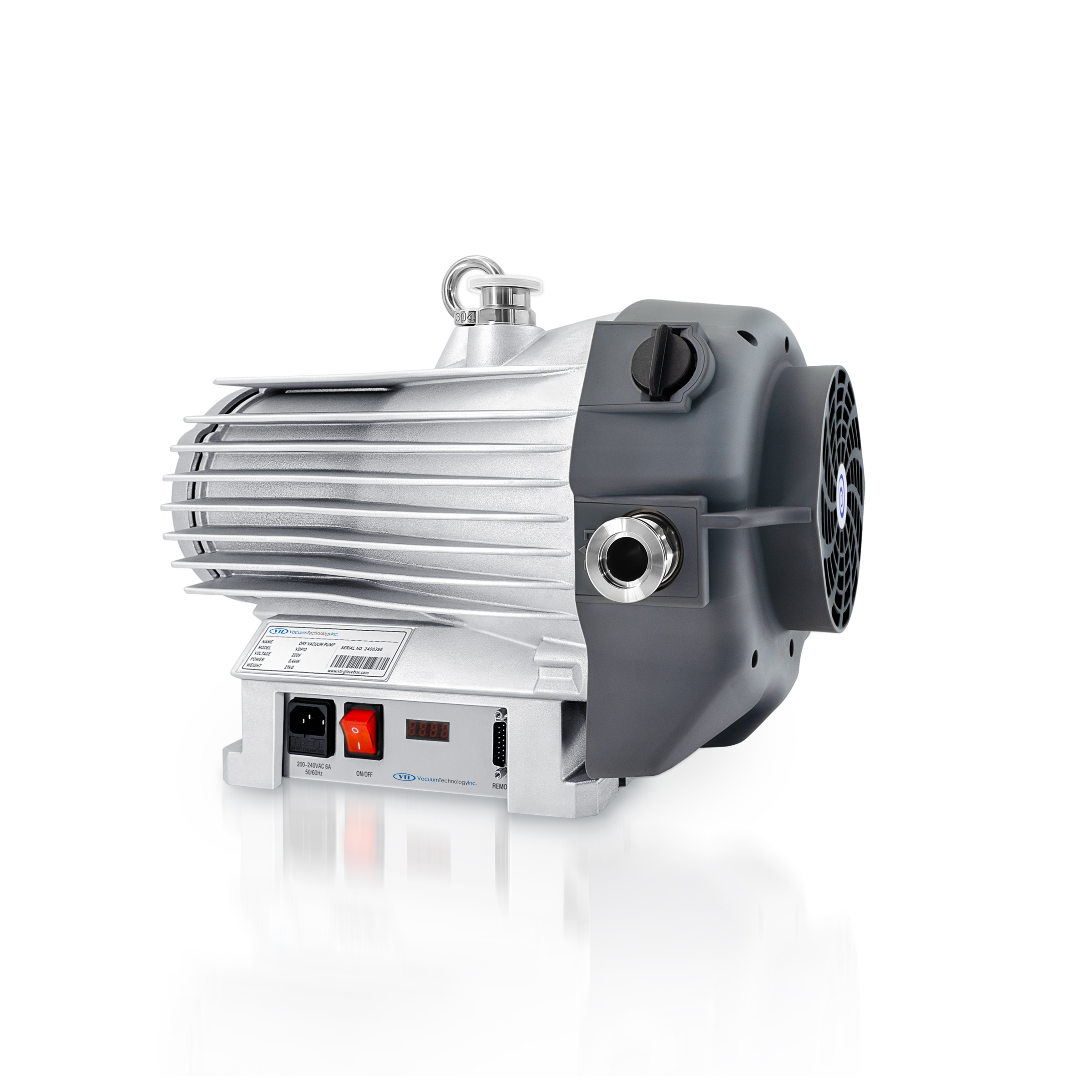

VDP10/220V

VDP10 Dry Vacuum Pump

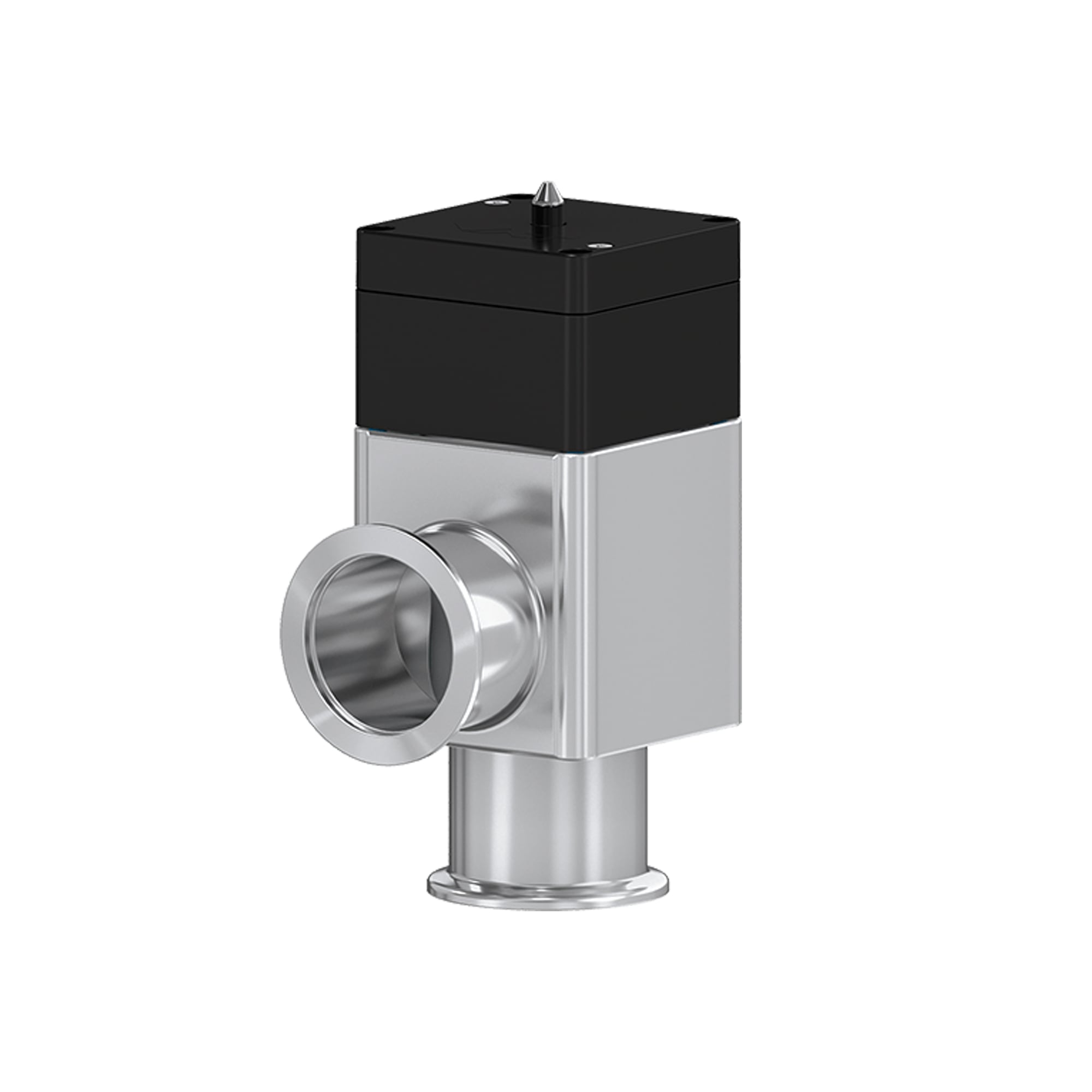

Angle Valve

Built on a reliable and robust core design, the pneumatic angle valve offers a wide range of design options.
Available in DN25, DN40, and DN50 to accommodate diverse application needs.
The valve can be operated via solenoid valves either mounted directly on the device or from remote locations.
Usable under varying temperature conditions depending on the selected sealing elastomer.
Configurable as normally open, normally closed, or double-acting to suit specific requirements.
In addition to standard options, further customization is available to meet specialized demands.

DN25 Specifications

DN40 Specifications

DN50 Specifications

Angle Valve

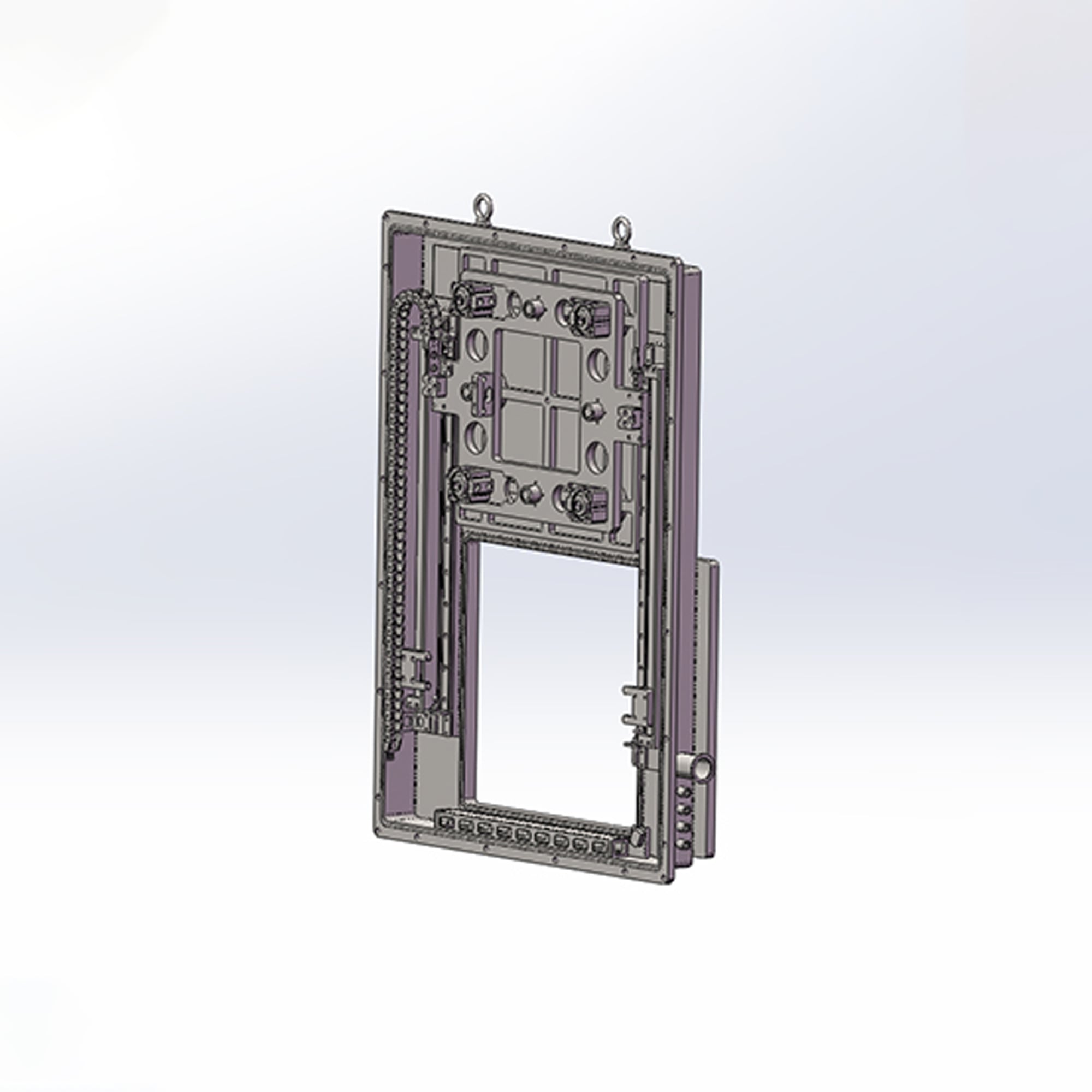

Gate Valve

Gate Valve / Slide Valve

Ideal for applications requiring strict control of leakage.
Primarily consists of a valve body, gate plate, guide rail cylinder, and O-ring seal etc.
The gate plate moves vertically along the centerline of the valve seat, enabling simple and direct opening and closing actions.
The sealing contact surface between the gate plate and valve seat is linear. Combined with O-ring seals and precision machining, the valve achieves an exceptional level of sealing.

Gate Valve

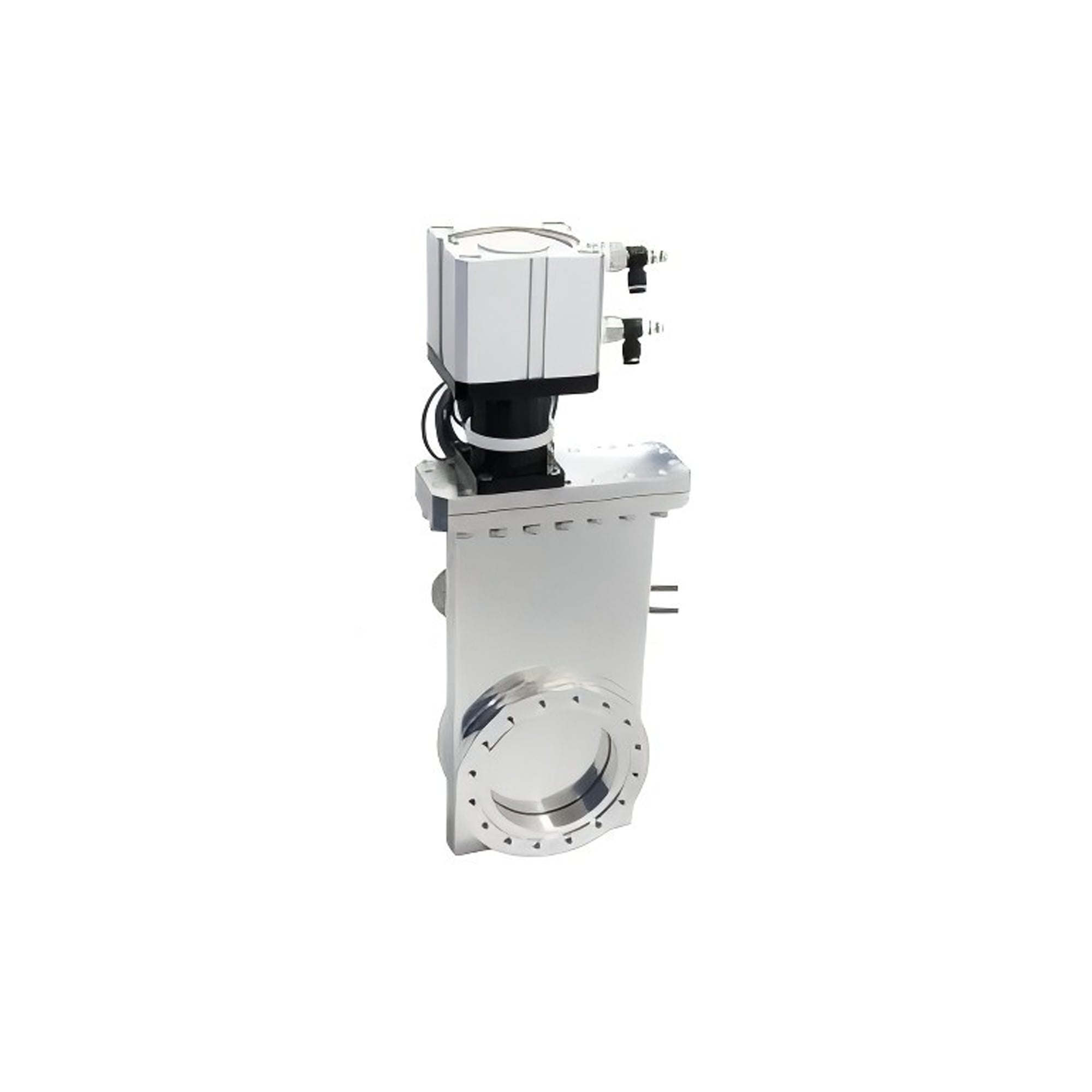

Ultra-High Vacuum Gate Valve

Operating Environment: Suitable for use in air, inert gas, and vacuum conditions.
The ultra-high vacuum gate valve is composed of three main components: the actuator, the valve, and the valve body. The connection ports are compatible with KF, ISO, ANSI, and CF flanges.

Features:
1）Reliable and Mature Design
2）Lubricant-Free, can be heated to a maximum temperature of 250°C.
3）Metal Valve Cap Sealing.
4）Automatic Fail-Safe Function
5）Stainless Steel Valve Body
6）The feed-through mechanism is sealed with welded metal bellows.
Applications:
Vacuum exhaust systems
Pumping systems for ultra-high vacuum applications
Semiconductor technology
Synchrotron radiation facilities
Academic research systems

Ultra-High Vacuum Gate Valve

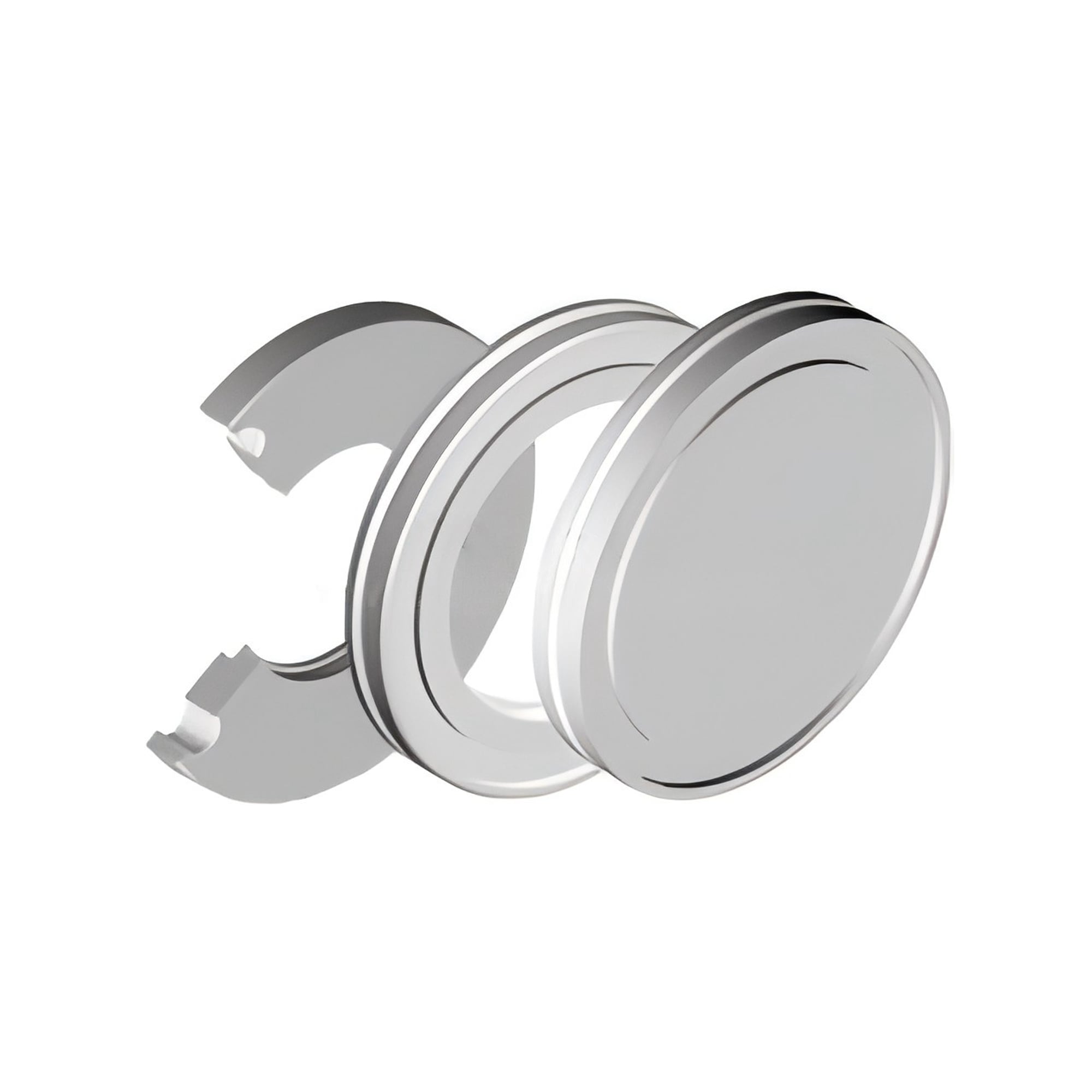

ISO Flange

Applicable Temperature: -150°C to 80°C
ISO Flange Subcategories:
End Cap
Through-Hole End Cap
Through-Hole Flange: Non-threaded holes and Threaded holes
Rotatable Bolt Ring
Butt-Weld Flange
Clamp Ring
Clamps: Single-Sided Clamp and Double-Sided Clamp
Plastic Protective Cap

ISO Flange

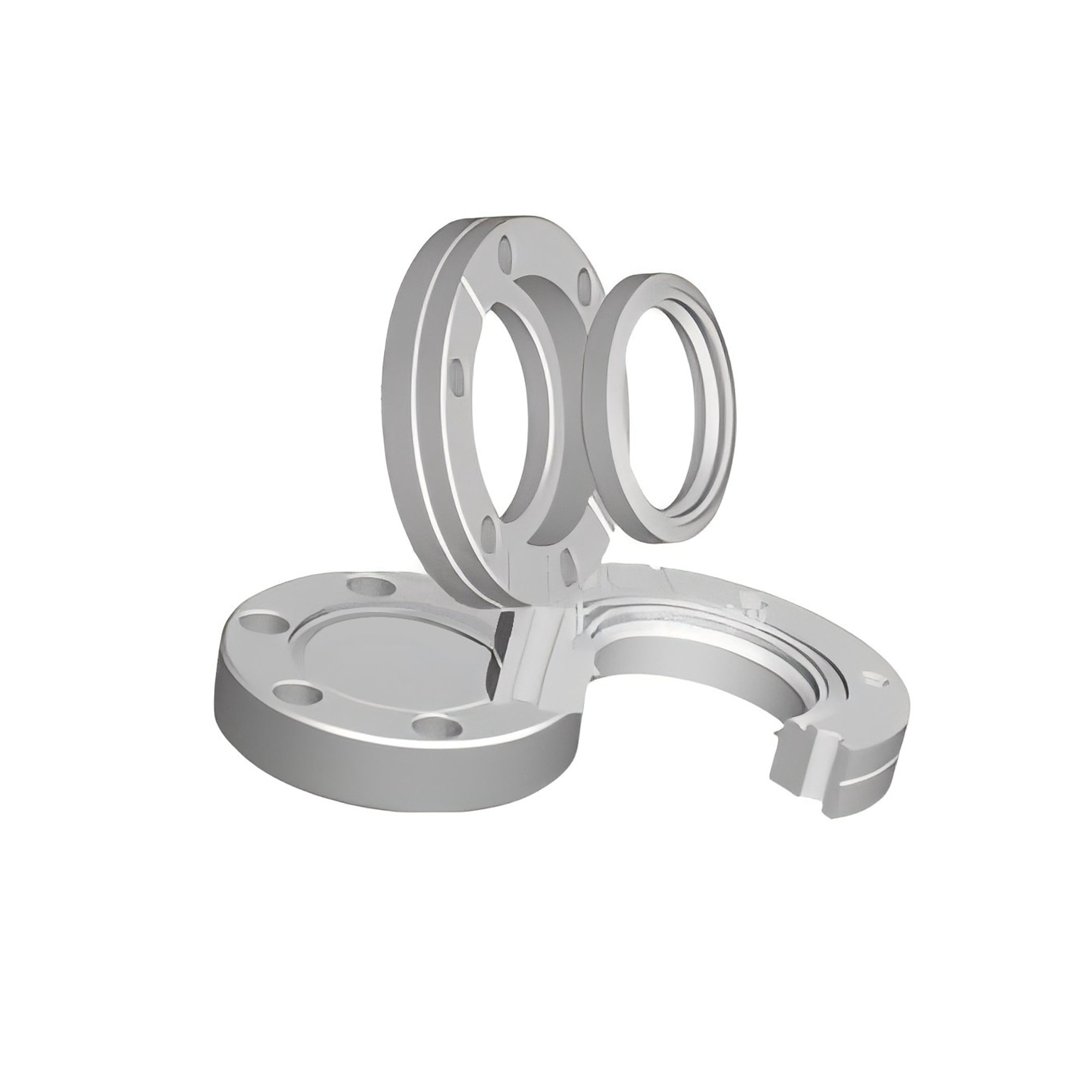

CF Flange

Applicable temperature: -200°C to 450°C
Material:304 S.S., 316 S.S., 316LN ESR
Gasket:Oxygen-Free Copper
Vacuum Level:-10⁻¹³ mbar
Plastic protective cover: PTFE (Polytetrafluoroethylene)

CF Flange

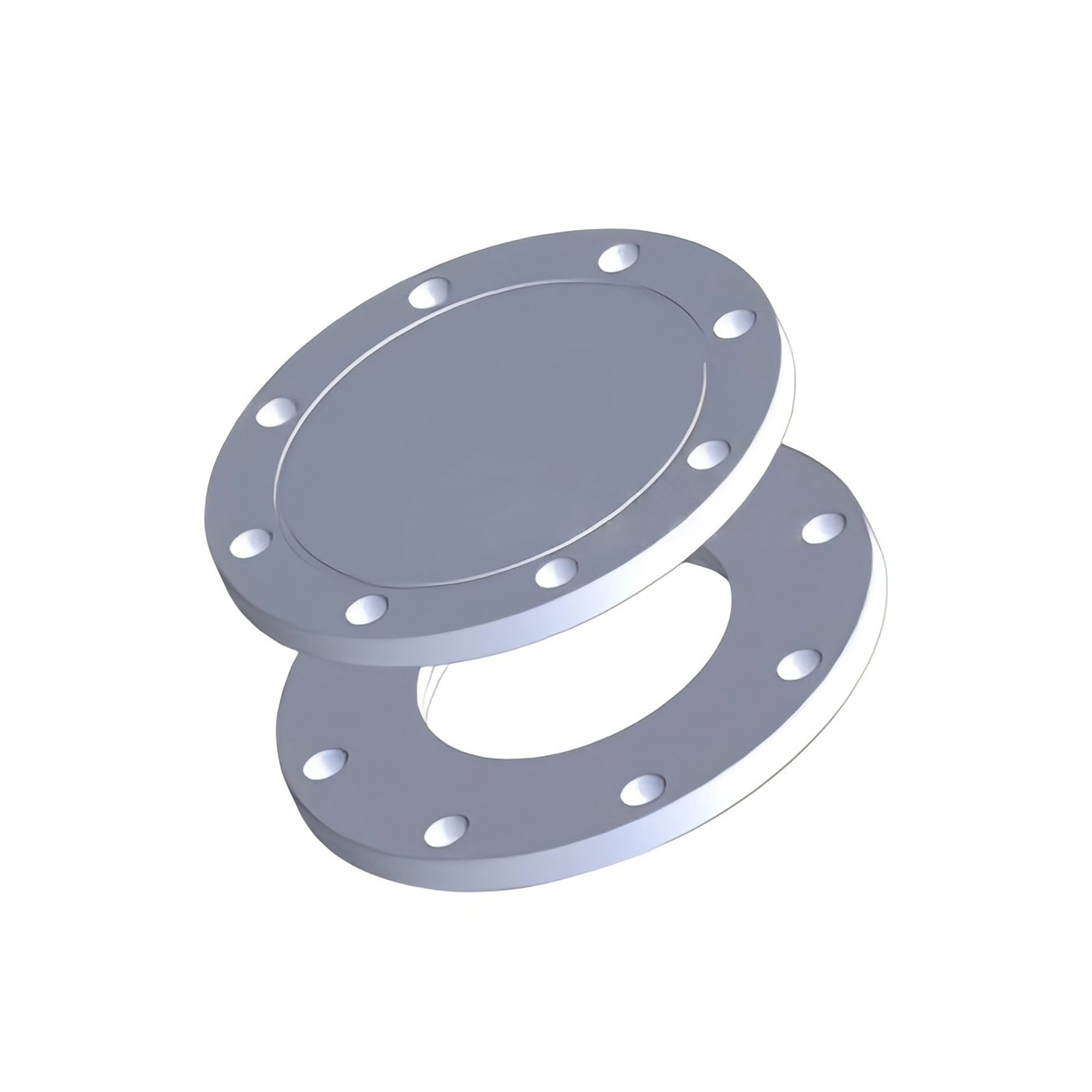

ANSI ASA Vacuum Flanges

304 stainless steel vacuum flanges with bolt fastening for easy assembly and disassembly.
The ANSI ASA vacuum flange series includes both blind flanges and O-ring groove flanges, available in a comprehensive range of accessory in sizes from 1" to 12".
Blind flanges, with no central hole, serve as end caps for vacuum piping systems. O-ring groove flanges, designed for pipe-to-pipe connections, are secured with bolts, ensuring convenient disassembly and reassembly.

ANSI ASA Vacuum Flanges
